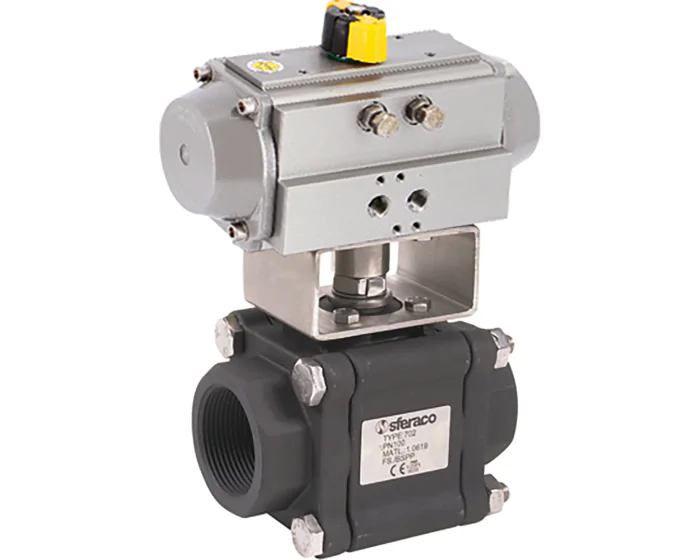

The 702 series 3-piece body ball valve has a 1.0619 steel body, a 1.4408 stainless steel ball and PTFE/carbon seats. It is actuated with an ALPHAIR pneumatic actuator. PS: 100 bar, TS: 220°C. Fire safety API 607.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 316 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 64.8 |
| Body material | Carbon steel A216 WCB (1.0619) |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 137 |
| Connections | BSP FF |
| Seats | PTFE-Carbon |
| Ball material | Stainless steel 316 |
| Surface temperature | TX |
| TS max (°C) | 220 |
| TS min (°C) | -20 |
| Pneumatic actuator type | Double acting |
| Ball valve design | 3-piece body |
| ATEX zone | 1.21.2.22 |
| Warranty period | 1 year |
| CE | Risk category III |
| Range | Industry |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body BSP FF Double acting DN8 - 1/4'' | 271540017006R | S1000843 |
€285.19
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body BSP FF Spring return DN8 - 1/4'' | 271540017106R | S1000844 |
€320.26
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body BSP FF Double acting DN10 - 3/8'' | 271541017006R | S1000845 |
€286.41
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body BSP FF Spring return DN10 - 3/8'' | 271541017106R | S1000846 |
€323.54
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' BSP FF Double acting | 271542017006R | S1000847 |
€286.41
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' BSP FF Spring return | 271542017107R | S1000848 |
€329.10
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN20 - 3/4'' BSP FF Double acting | 271543017006R | S1000849 |
€297.87
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN20 - 3/4'' BSP FF Spring return | 271543017107R | S1000850 |
€348.56
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' BSP FF Double acting | 271544017006R | S1000851 |
€354.20
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' BSP FF Spring return | 271544017108R | S1000852 |
€450.70
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN32 - 1''1/4 BSP FF Double acting | 271545017007R | S1000853 |
€387.60
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN32 - 1''1/4 BSP FF Spring return | 271545017108R | S1000854 |
€469.20
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 BSP FF Double acting | 271546017007R | S1000855 |
€393.00
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 BSP FF Spring return | 271546017109R | S1000856 |
€521.99
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' BSP FF Double acting | 271547017008R | S1000857 |
€691.26
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' BSP FF Spring return | 271547017110R | S1000858 |
€851.26
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body Double acting DN8 - 1/4'' Welding BW | 271560017006R | S1000859 |
€285.19
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body Spring return DN8 - 1/4'' Welding BW | 271560017106R | S1000860 |
€320.26
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body Double acting Welding BW DN10 - 3/8'' | 271561017006R | S1000861 |
€286.41
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body Spring return Welding BW DN10 - 3/8'' | 271561017106R | S1000862 |
€323.54
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' Double acting Welding BW | 271562017006R | S1000863 |
€286.41
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' Spring return Welding BW | 271562017107R | S1000864 |
€329.10
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN20 - 3/4'' Double acting Welding BW | 271563017006R | S1000865 |
€297.87
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' Double acting Welding BW | 271564017006R | S1000866 |
€354.20
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' Spring return Welding BW | 271564017108R | S1000867 |
€450.70
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN32 - 1''1/4 Double acting Welding BW | 271565017007R | S1000868 |
€387.60
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN32 - 1''1/4 Spring return Welding BW | 271565017108R | S1000869 |
€469.20
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 Double acting Welding BW | 271566017007R | S1000870 |
€393.00
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 Spring return Welding BW | 271566017109R | S1000871 |
€521.99
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' Double acting Welding BW | 271567017008R | S1000872 |
€691.26
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' Spring return Welding BW | 271567017110R | S1000873 |
€851.26
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body Double acting DN8 - 1/4'' Welding SW | 271580017006R | S1000874 |
€285.19
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body Spring return DN8 - 1/4'' Welding SW | 271580017106R | S1000875 |
€320.26
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body Spring return DN10 - 3/8'' Welding SW | 271581017106R | S1000876 |
€323.54
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' Double acting Welding SW | 271582017006R | S1000877 |
€286.41
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN20 - 3/4'' Double acting Welding SW | 271583017006R | S1000878 |
€297.87
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN20 - 3/4'' Spring return Welding SW | 271583017107R | S1000879 |
€348.56
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' Double acting Welding SW | 271584017006R | S1000880 |
€354.20
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' Spring return Welding SW | 271584017108R | S1000881 |
€450.70
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN32 - 1''1/4 Double acting Welding SW | 271585017007R | S1000882 |
€387.60
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN32 - 1''1/4 Spring return Welding SW | 271585017108R | S1000883 |
€469.20
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 Double acting Welding SW | 271586017007R | S1000884 |
€393.00
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 Spring return Welding SW | 271586017109R | S1000885 |
€521.99
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' Double acting Welding SW | 271587017008R | S1000886 |
€691.26
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' Spring return Welding SW | 271587017110R | S1000887 |
€851.26
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body NPT FF Double acting DN8 - 1/4'' | 271590017006R | S1000888 |
€285.19
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body NPT FF Spring return DN8 - 1/4'' | 271590017106R | S1000889 |
€320.26
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body NPT FF Double acting DN10 - 3/8'' | 271591017006R | S1000890 |
€286.41
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body NPT FF Spring return DN10 - 3/8'' | 271591017106R | S1000891 |
€323.54
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' NPT FF Double acting | 271592017006R | S1000892 |
€286.41
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' NPT FF Spring return | 271592017107R | S1000893 |
€329.10
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN20 - 3/4'' NPT FF Double acting | 271593017006R | S1000894 |
€297.87
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN20 - 3/4'' NPT FF Spring return | 271593017107R | S1000895 |
€348.56
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' NPT FF Double acting | 271594017006R | S1000896 |
€354.20
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' NPT FF Spring return | 271594017108R | S1000897 |
€450.70
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN32 - 1''1/4 NPT FF Double acting | 271595017007R | S1000898 |
€387.60
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN32 - 1''1/4 NPT FF Spring return | 271595017108R | S1000899 |
€469.20
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 NPT FF Double acting | 271596017007R | S1000900 |
€393.00
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 NPT FF Spring return | 271596017109R | S1000901 |
€521.99
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' NPT FF Double acting | 271597017008R | S1000902 |
€691.26
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' NPT FF Spring return | 271597017110R | S1000903 |
€851.26
(excl. btw)
|
add to cart |
